Specification For Micro-fine Cement

超細水泥MFC系列說明書

1. Introduction介紹

1.1 Description描述

Micro-fine cement is Portland cement based cements composed of ultrafine particles and are designed for injection into loose soils, rock and concrete. Because of micro-fine cement’s small particle size (the fineness largest grain size passing D95 is < 16.0 μm and Blaine value> 600 m2/kg.), it penetrates very well into tight joints, fissures and pore spaces to provide a water-tight grouted rock or soil mass. It can be used as grouting materials after adding water reducing agent (GC1).

超細水泥是經特殊設備精細研磨而成的新一代無機剛性超細材料，利用超細水泥再添加其他外加劑(例如GC1減水劑)、摻合料攪拌而成的漿液，可以用于補強加固工程的灌注作業。

1.2Application應用范圍

· Rock injection: Tunnels, caverns, mines, etc. used for pre- and post excavation injection.

· Ground water sealing and ground stabilization.

· Soil injection.

· Dam foundation injection

· Prepacked injection.

· Contact injection.

．水利工程中大壩壩體及壩基裂縫灌漿；

．灌筑地下防水帷幕，截?cái)酀B透水源，整體抗?jié)B堵漏；

．加固和提高松軟土及巖石的力學強度，修復砼結構和恢復其整體性；

．糾正因地層不穩定引起不均勻沉降而導致的大壩和高層建筑物的開裂、傾斜；

．公路、橋梁、機場跑道等地基下陷的補漿加固；

．各種地下建筑物開挖前的預處理以及地質鉆探中復雜地層鉆孔中的護孔固壁，止涌堵漏等工程；

．復雜地層的流沙層固沙及淤泥質土層的固結。

1.3 Features and benefits產品優點

· Fast setting time.

· Fine particle size

· Durable.

· Economical solution.

· Non-hazardous

· Standard cement injection equipment can be used.

· Better penetration in tight joints, fissures and pore spaces.

· Greater penetration imparts greater water tightness.

· Excellent penetration in tight joints, fissures and pore spaces

· Better working environment and no hazardous components.

· Better working environment.

· Improved grouting efficiency and less waste

·超細水泥材料無毒、無味、對地下水及環境無污染，屬環保型材料。

·超細水泥可以配合其他摻和料、助劑使用，攪拌而成的漿液固化時無收縮現象，結石強度高，耐久性好，不老化，抗?jié)B性能佳。

·超細水泥材料的比表面積在600㎡/㎏以上，平均粒徑10μm以下，可使?jié){液流動性好，因而其穩定性及可灌性高。

1.4 Packaging包裝及儲存

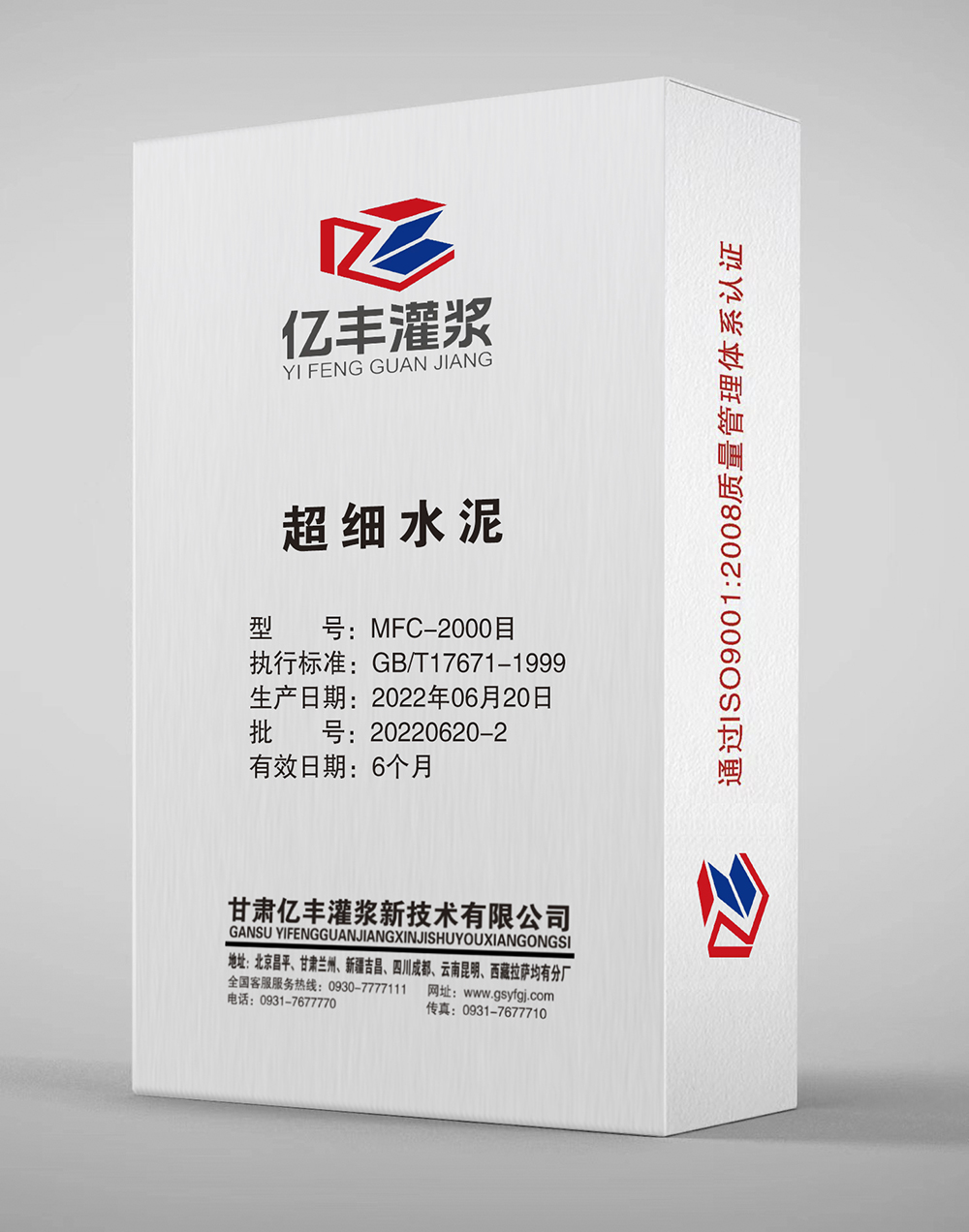

Micro-fine cement is supplied in 25 kg plastic bags for ease of handling and to maximize

storage life.

包  裝：采用紙塑復合袋包裝， 25公斤／袋；

貯  存：須貯存于干燥通風的室內，編織袋密閉，注意防潮、防凍；

保質期：6個月。

2 Performance Characteristics

High-pressure piston pumps are normally used to pump the suspension into the rock. The

grout should be injected within6HOURS after mixing to ensure that it keeps penetrating into

the fissures.

針對不同大小的縫隙空間．不同土壤地質環境，不同的灌漿基礎條件，不同的強度指標要求確定適宜的水灰比(通常注漿料水灰比的范圍為0.5—3.0)，必須用高速電動制漿機（1400-1500轉/分）進行攪拌5分鐘以上。

可采用手動或電動水泥灌漿設備進行灌漿作業，注漿壓力在一定的范圍內(通常在0.1-0.5MPa范圍內。不同的基礎條件，不同的水灰比，所需的注漿壓力不同。注漿壓力太大，可能形成劈裂注漿，無法均勻滲透。灌漿壓力太小，則無法滲透至細微空間.

2.1 Technical Data

3 Application procedure使用方法

3.1 Dosage摻量

Micro-fine cement is generally dosed at 1.5 – 2.0 liters other micro-fine admixture per 100 kg of cement. Other dosages

may be recommended in special cases according to specific job requirements. Consult your

local UGC representative for advice.

本產品一般不建議直接單獨用于灌漿作業，每100kg的超細水泥宜添加1.5-2.0升輔助超細摻和料或GC1外加后方可使用，以便增加超細水泥的流動性、可灌性、滲透性、穩定性等性能。根據具體工作要求的不同，可以推薦適合配比。

3.2 Mixing混合

1. water 水

2. Micro-fine cement 超細水泥

3. 2‰ GC1 水泥量的千分之二的高效減水劑

Mix at least for 5 minutes with colloidal mixer at 1500rpm.

· Transfer to agitator.

It is very important to use an efficient mixer. Colloidal mixers are the best, but high-speed

paddle mixers are acceptable.

Minimum rpm for colloidal mixers: 1500 rpm.

Minimum rpm for paddle mixers: 400 rpm.

NB: Do not over mix. Mixing longer than recommended may cause the grout temperature to

increase and set in the pump and hoses.

·針對不同大小的縫隙空間．不同土壤地質環境，不同的灌漿基礎條件，不同的強度指標要求確定適宜的水灰比(通常注漿料水灰比的范圍為0.5—3.0)，必須 用高速（1400-1500轉/分）電動攪拌機進行攪拌5分鐘以上。

·可采用手動或電動水泥灌漿設備進行灌漿作業，注漿壓力在一定的范圍內(通常在0.1-0.5MPa范圍內。不同的基礎條件，不同的水灰比，所需的注漿壓力不同。

·注漿壓力太大，可能形成劈裂注漿，無法均勻滲透。灌漿壓力太小，則無法滲透至細微空間。

3.3 Pot life適用時間

The mix shall be kept under constant agitation prior to injection.

混合好的超細水泥注漿液在注漿前保持勻速攪拌流動狀態，否則靜置會初凝影響超細水泥注漿液的使用效果。

4 Reference注意事項

4.1 Storage 儲存有效期

Micro-fine cement has a shelf life of 6 months when stored in original closed bags in ventilated

dry areas.

貯  存：須貯存于干燥通風的室內，編織袋密閉，注意防潮、防凍；

保質期：6個月。

4.2 Safety precautions安全須知

Any physical contact (e.g. skin or eyes) made with micro-fine cement should be avoided, as it may cause irritation or burns. If such contact occurs, the affected area should be washed with plenty of clean water. In case of eye contact, seek immediate medical advice. For further information please refer to the Material Safety Data Sheet or contact your local UGC office. The information given here is true, represents our best knowledge and is based not only on laboratory work but also on field experience. However, because of numerous factors affecting results, we offer this information without guarantee and no patent liability is assumed. For additional information or questions, please contact your local UGC representative.

1、超細水泥材料是以水泥為基材的材料，在使用過程中，要戴手套和防護眼睛、防塵口罩，穿工作服，防止灼傷眼睛和皮膚。

2、若不甚濺入眼睛，請立即用大量清水沖洗，并向醫生咨詢；

3、若不慎誤食，請立即喝大量清水，并向醫生咨詢。
